Designed for simpler life
|
Qtouch
is an integration system which allows to connect different
systems and make them accessibile through a common interface
on a stand alone touch-screen. An interoperating modules
software architecture manages the whole processing activity
and the communication between different hardware systems.

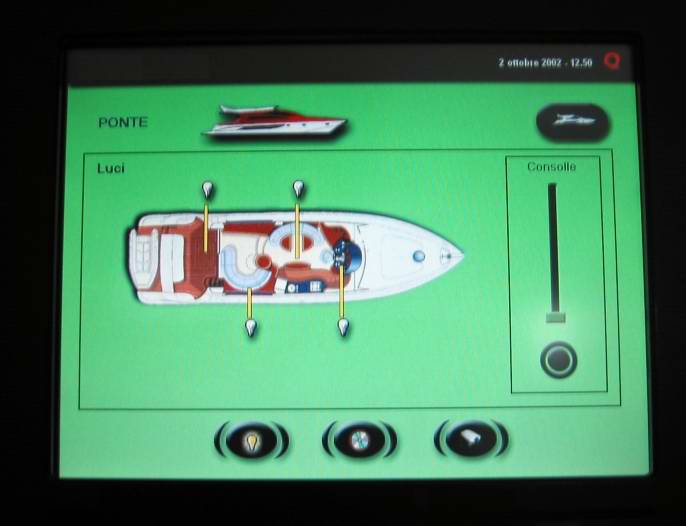

Every activity is precisely and clearly
visualized on the graphic user interface in a domotic
system. A system topology based on an Ethernet bus (100
Mb/sec) makes of Qtouch an intelligent, powerful and user-centered
controller.
|
| Number
of touch-screens in the system: |
Unlimited |
| Software
update: |
Available
through Ethernet connection (Tcp/Ip). |
| Plate
style: |
Removable,
in alluminium, different colors available. |
| Screen
resolution: |
800
x 600 pixels |
| Visibile
area: |
LxH
245 mm x 185 mm |
| Heat
sinking system: |
Passive,
with variable speed-tachymetric valve. |
| Touch-screen: |
Resistive |
| Screen
technology and dimension: |
TFT,
12.1 “ |
| Ports: |
2
x PS/2, 1 x Parallel
2 x RS232, 2 x USB
1 x Rj45 Ethernet 10/100 |
| Connectors: |
Mic,
Audio IN, Audio OUT |
| Plateless
Dimensions (mm.): |
343l
x 263h x 80d |
| Wall
box dimensions (mm.): |
330l
x 270h x 75d |
| Weight
(kg.) : |
4.5 |
| Power
supply: |
Switching
Input from 12.5 to 26 VDC |
| External
power supply: |
220V,
19V DC |
|
| Scenario
and program control: |
In
the whole system |
| Number
of pages and graphical objects: |
Unlimited
|
| Programming: |
WYSIWYG
(What You See Is What You Get) through authored software
in Windows 98/ME/NT/2000 environment. |
| Remote
download of the setup: |
via
Ethernet connection (Tcp/Ip) |
| System
Firmware update: |
via
Ethernet connection (Tcp/Ip) |
| Graphical
objects library: |
Provided
with the product |
| Complex
graphical objects management: |
Images,
sound, animation… |
| Support
: |
Up
to 2 external devices on proprietary software architecture
(NetDriver) for integration of further systems (e.g.:
anti-theft systems). |
|
| View
on your browser (PDF 1445KB) |
|
| Download
(ZIP 1083KB) |
|
|
|
|
