Comfortable and safe navigation |
Guardian
System 3000
is a control device which monitors the most frequent safety
functions of the engine room. It prevents critical events
like engine fusion, gasket burning, bilge flooding, fire-on
boarding by checking oil level, engine temperature, state
of the water-pumps, smoke presence. Judging on alarms
detected, the system decides if only warning the user
through an acoustic alarm or, in extreme conditions, stopping
the engine whose conditions were recognized as critical.
Guardian
System 3000 is preset to be connected through
NMEA connectors to the most important navigation functions,
such as cartographic GPS, sounding line, pilot book, logbook.
|
|
During
the navigation
Boat safety is assured by a continuous and precise monitorign
system, which can directly stop engines to keep them from
damage.
Technical
assistance
It is provided with historic data about the engine, in order
to recognize anomalies which are not critical, still important
as symptoms of an upcoming breakdown.
Antitheft
The tracking function allows remote real-time monitoring
of state, position and course of the boat.

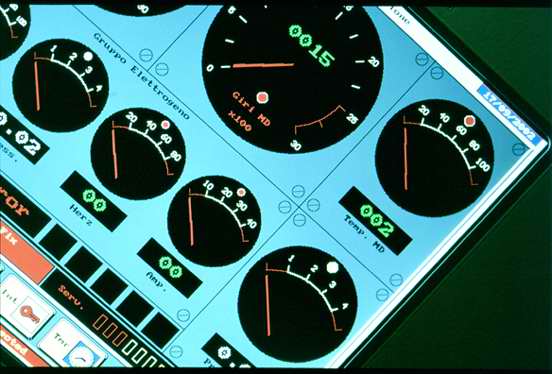

Visualisation
Guardian System 3000 is provided with a 12” waterproof and
backlighted touch-screen, which can constantly visualize
measuring instruments of the engine room.
|
| Engines
(x 2): |
Revolutions
per minute, engine water temperature, oil pressure,
oil temperature. |
| Electric
system: |
Engine
battery voltage, auxiliary battery voltage. |
| Generator: |
Exit
frequency, water temperature, oil pressure, Ampere generated. |
| Additional
functions: |
Tracking,
smoke detector, bilge water level detector, Antitheft
system, GPS system, graphic echo-sounder. |
| Power
supply voltage: |
12-24
V |
| Electrical
input: |
40
VA |
| Display: |
Color
12” |
| Screen: |
Touch-screen |
| Dimensions
(mm.): |
390h
x 280w x 140d |
| Weight
(kg.): |
5 |
| Chassis: |
Marine
steel |
| System: |
Tropicalized |
|
